ZSA Series
Silencer
ZSA Silencer

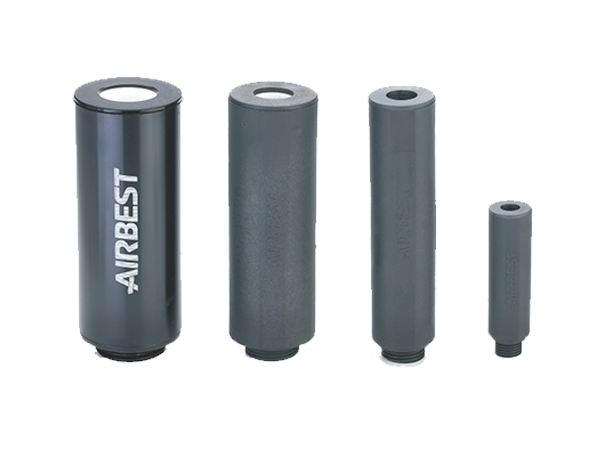

ZSA Series Silencer
Features
How to order
Technical parameters

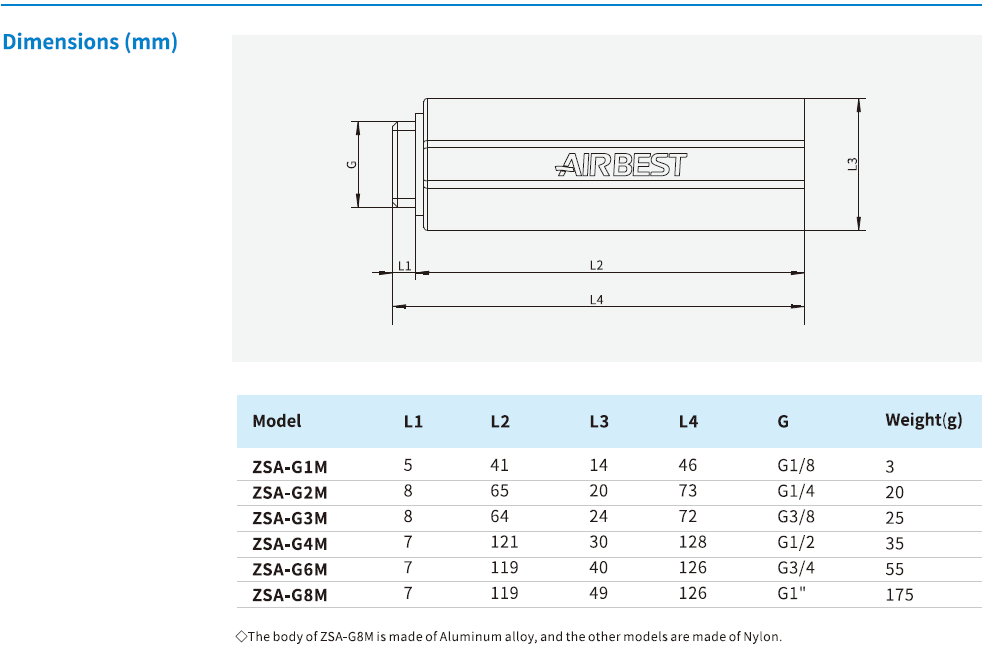

Dimensions (mm)
Download
Back

Features

◇ The silencers which are fitted to many  standard vacuum pumps can be ordered separately as replacements. They significantly reduce noise level on all exhaust application.



How to order
ZSA - G1M
①②
①  Series② Connection thread
ZSAG1M - G1/8Male thread
G3M - G3/8Male thread
G6M - G3/4Male thread
G2M - G1/4Male thread
G4M - G1/2Male thread
G8M - G1"Male thread
